Disinfection Tunnel

Get a Price/Quote

Disinfection Tunnel Specification

Noise Level
< 50 dB

Shape
Rectangular Cabin

Frequency
50-60 Hz

Voltage
220-240 V AC

Capability
Disinfects 12-15 persons per minute

Pressure
2-5 bar

Capacity
30 liters (disinfectant tank)

Response Time
< 2 seconds (sensor activation)

Display Type
LED Display

Mounting Type
Ground Standing

Power Source
Electric with optional battery

Accessories
Spray Nozzles, Control Panel, Foot Mat, Welcome Sign

Sterilization Mode
Fine mist spray disinfection

Sensor Type
Infrared Motion Sensor

Temperature Range
0C to 50C

Weight
120 kg

Type
Automatic Disinfection Tunnel

Properties
Anti-bacterial, Water Resistant, Weather Proof, Portable, Durable, Rust Proof

Feature
Automatic Sensors, Low Maintenance, Quick Setup

Usage
For public entryways, offices, hospitals, commercial buildings, schools, public transport stations, malls

Material
Stainless Steel, Polycarbonate Panels

Recommended For
Mass disinfection, COVID-19 prevention, sanitization of personnel

Dimension (L*W*H)
6 ft x 4 ft x 7 ft

Electricity Consumption
300-500 W

Battery Life
Up to 8 Hours (Optional battery backup)

Color
Silver / Transparent Panels

Application
Disinfection and sanitization of people

Automation Grade
Fully Automatic

Features
Fully automatic, energy efficient, easy to operate, instant mist spray, non-toxic disinfectant compatibility, easy mobility

Waterproof Rating
IP65

Spray Angle
120° wide coverage

Entry Control
Single entry with automatic door (optional)

Mobility
Fitted with heavy-duty wheels for easy movement

Operating Environment
Indoor and Outdoor Use

Safety System
Emergency stop button, leak-proof bottom

Disinfectant Compatible
Alcohol, Quaternary Ammonium compounds, Hypochlorite

Refill Alert
Tank low-level sensor with alert

Compliance
Meets WHO and local health authority recommendations

About Disinfection Tunnel

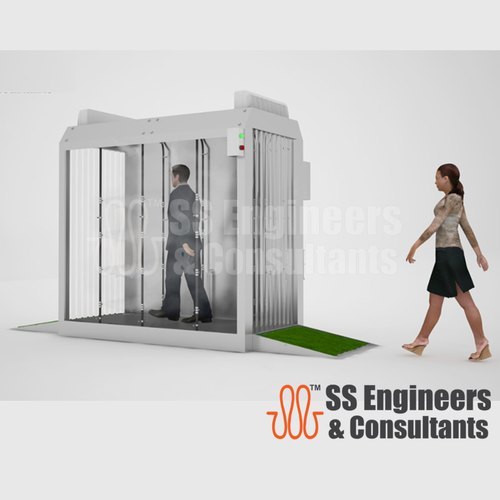

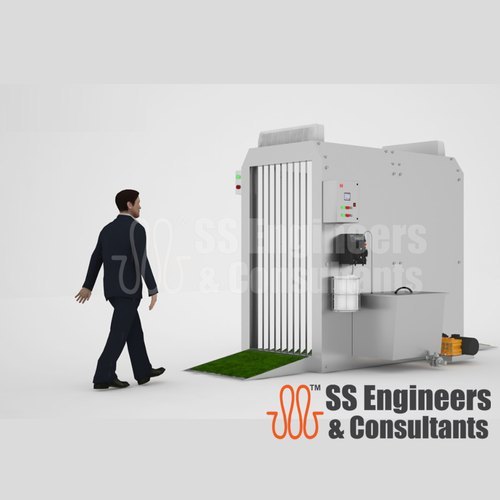

Disinfection Tunnel

Ss Engineers and Consultants offer a wide range of tunnels for sanitizing / disinfection. Especially used previous entrance to the cleanroom or high-risk areas, these disinfection tunnels can be adapted at places where the air infection levels are very high.

The innovative system has many advantages, highlighting the drastic reduction in the consumption of water and disinfectant, up to 15 times compared to a traditional spray disinfection system.

Moreover, misting guarantees a uniform distribution of the disinfectant / sanitizing agent across the inner surface of the tunnel for the person to be treated in the high-risk zone.

Keep your loved ones safe COVID-19

Viruses and bacteria can contaminate the air and linger on surfaces for many days a Hand sanitizers; hand washing will only reduce partial risk and provide only temporary protection. At SS Engineers we offer Tunnel Disinfection System to provide complete body protection (long term protection) from infections and viruses.

https://www.ssengrindia.in/industrial-washing-equipments.html

Youtube: https://www.youtube.com/c/SSEngineers...

Advanced Entry Control and Safety Mechanisms

Equipped with a single entry and optional automatic door, the tunnel features an emergency stop button and leak-proof bottom. This prioritizes user safety, ensuring that operations can be halted immediately in case of an incident and preventing liquid spillage for a cleaner environment.

Efficient Disinfection for High Traffic Areas

With the capacity to disinfect 12 to 15 persons per minute, the tunnel uses a fine mist spray covering a wide 120 angle. It supports various non-toxic disinfectants, including alcohol and hypochlorite, ensuring rapid and thorough sanitization compliant with WHO and local regulations.

Designed for Diverse Environments

Sturdy and portable, this tunnel is suited for both indoor and outdoor deployment. UL-rated for IP65 waterproofing, anti-bacterial surfaces, and rust-proof materials guarantee reliable performance under diverse weather and operational conditions.

FAQ's of Disinfection Tunnel:

Q: How does the disinfection tunnel operate automatically?

A: The tunnel uses infrared motion sensors to detect a person's entry and activates a fine mist spray within 2 seconds. Automatic doors (optional) and a control panel streamline the process for a touch-free, efficient sanitization experience.

Q: What types of disinfectants are compatible with this tunnel?

A: The system is designed for use with alcohol, quaternary ammonium compounds, and hypochlorite-based disinfectants. This flexibility allows for effective adaptation to various sanitization needs and compliance with health guidelines.

Q: When should the disinfectant tank be refilled?

A: A low-level sensor within the 30-liter tank triggers an alert when a refill is required, ensuring uninterrupted operation and timely maintenance.

Q: Where can the disinfection tunnel be installed?

A: The tunnel's portable design with heavy-duty wheels makes it suitable for multiple settings such as public entryways, office buildings, schools, hospitals, malls, and transport stations, both indoors and outdoors.

Q: What is the process for using the disinfection tunnel?

A: Users walk through the rectangular cabin where an infrared sensor detects their presence. The tunnel automatically activates a fine mist spray to disinfect personnel efficiently in less than two seconds.

Q: What are the main benefits of using this disinfection tunnel?

A: Key advantages include increased safety, rapid and thorough disinfection, energy efficiency, low noise operation (< 50 dB), robust durability, weatherproof and water-resistant construction, and easy mobility for convenient repositioning.
